How to Make Custom Wooden Cabinet Handles (Beginner-Friendly DIY)
At Stud & Sage, we’re big believers in transforming simple materials into something beautiful, and these handmade wooden handles are one of my favorite examples. With just a piece of scrap wood, a router, and a few basic tools, you can create custom cabinet pulls that look high-end and add a personal touch to your home.
This post contains affiliate links. If you choose to purchase through them, I may earn a small commission at no extra cost to you. Thank you so much for supporting Stud & Sage, it truly helps me continue sharing DIY projects like this.
Materials & Tools
A 3″ × 1″ piece of wood (choose hardwoods like oak, walnut, or maple for durability)
Standard cabinet screws (I reused the ones already on my cabinet)
Wood stain (optional — I used American Walnut)
Sandpaper (120, 180, and 220 grit)
Tools
Router + cove bit (this is the router I own and I love it so far)
Router edge guide – trust me, it’s going to be impossible to get straight lines without one!
Clamps (there are so many options out there, but you don’t need anything fancy for this)
Pencil + measuring tape
1. Start With Your Wood Block
Cut or grab a piece of wood that’s roughly 3″ × 1″. This size gives your hand something substantial to grip when you complete the handles, but also still looks clean and modern.
Tip: If you’re buying wood specifically for this project, choose a hardwood like walnut, oak, or maple so the handles hold up to daily use.

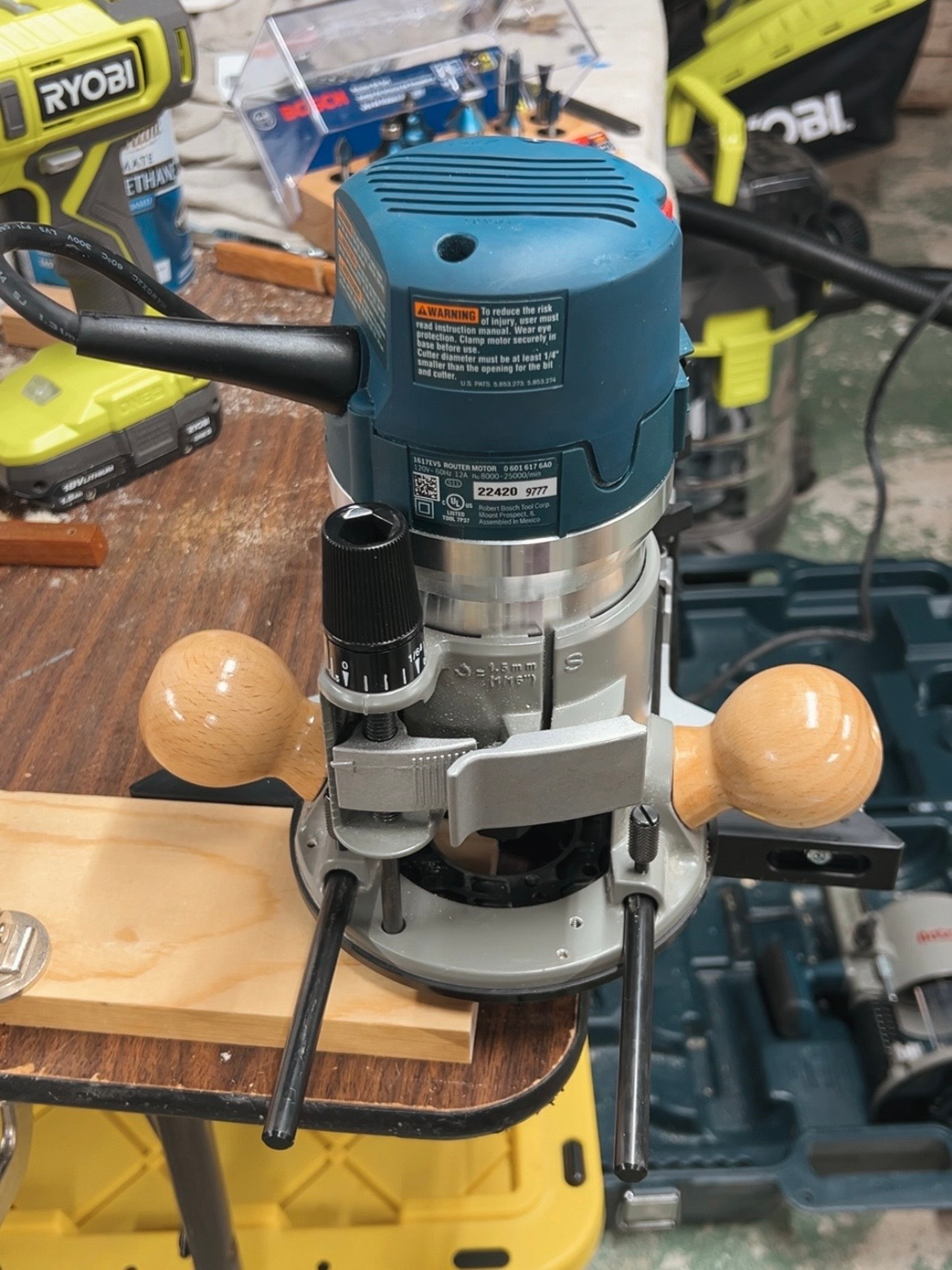

2. Choose Your Router Bit + Set the Depth
I used a cove bit, which creates a soft, rounded flute along the face of the handle. Install your bit into the router and set your depth.
Important: Keep the flutes shallow. You need enough material left on the back of the handle for screws to safely go in without poking through.
3. Mark Your Flute Lines
Use a pencil to mark evenly spaced lines along the length of your wood block. These marks will guide where you’ll route the flutes.
This helps you keep things symmetrical and ensures your handle design feels custom.

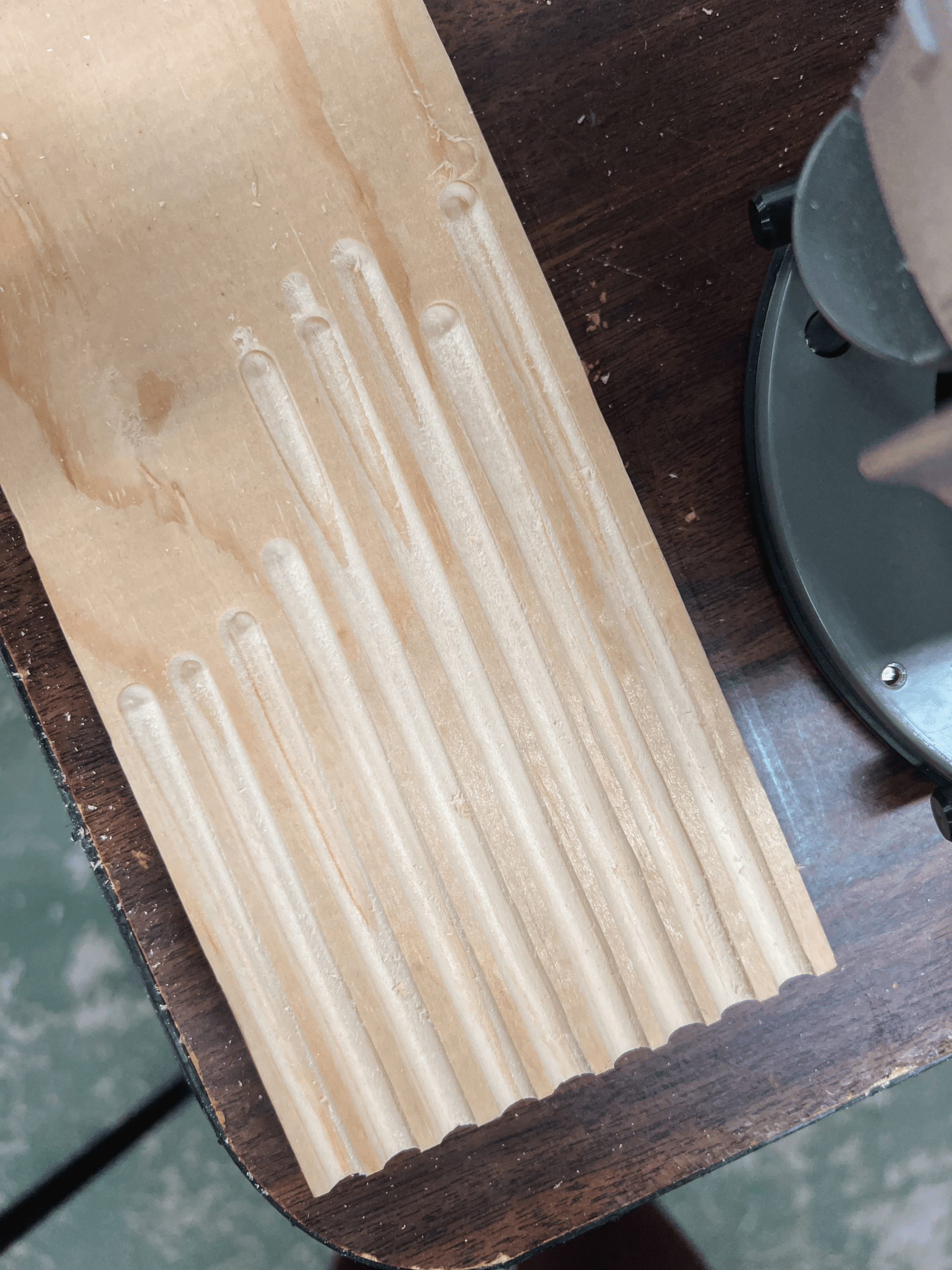

4. Route the Flutes Using an Edge Guide

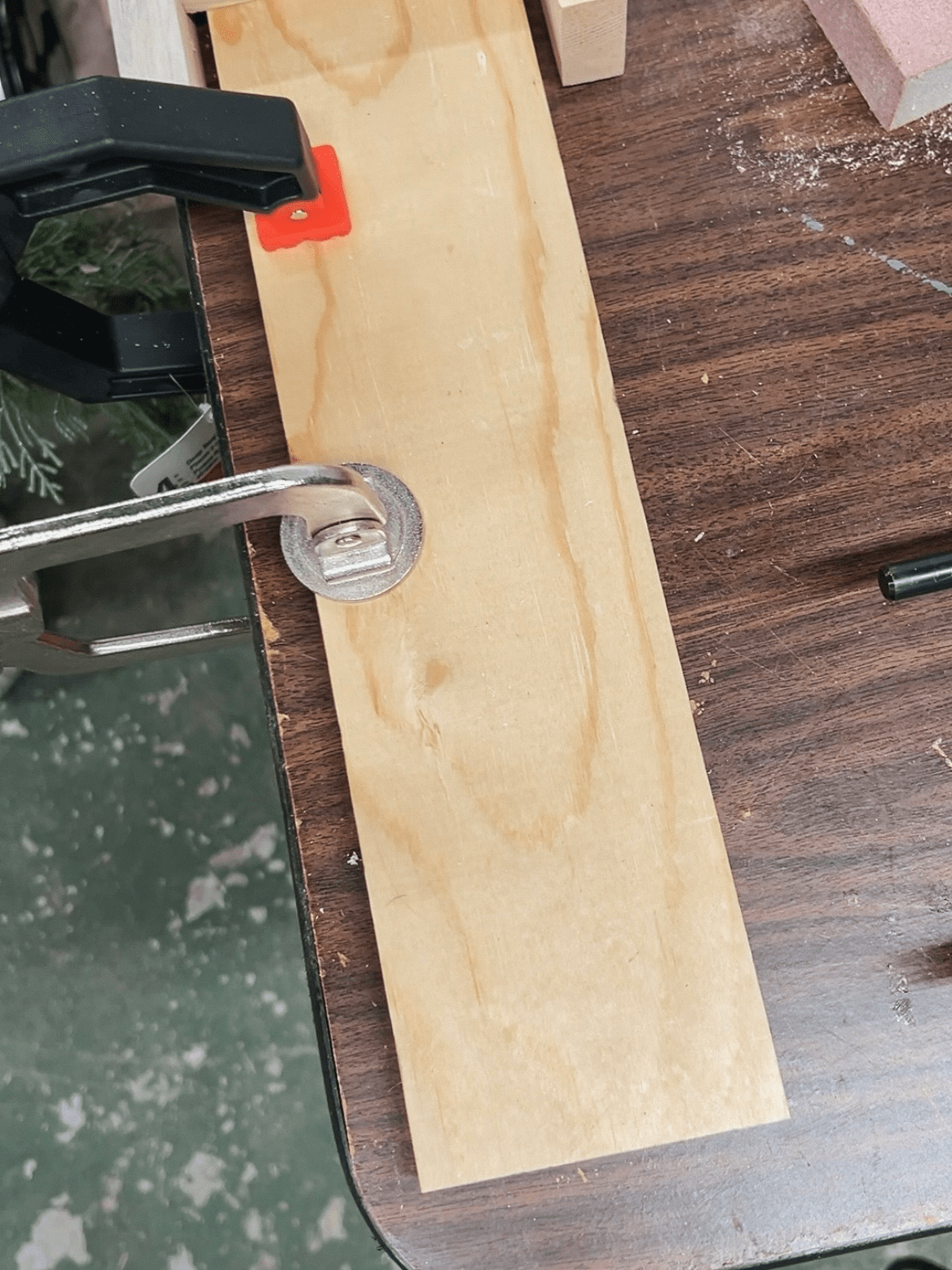

Clamp your wood securely, set your router’s edge guide, and cut your first flute along the marked line.
Slide the edge guide to your next marked line, and repeat. Continue this process until the entire face of the handle has evenly spaced flutes.
Tip: If you’re new to routing, do a test cut on a scrap piece first to confirm your depth and spacing. I needed a few practice rounds myself!

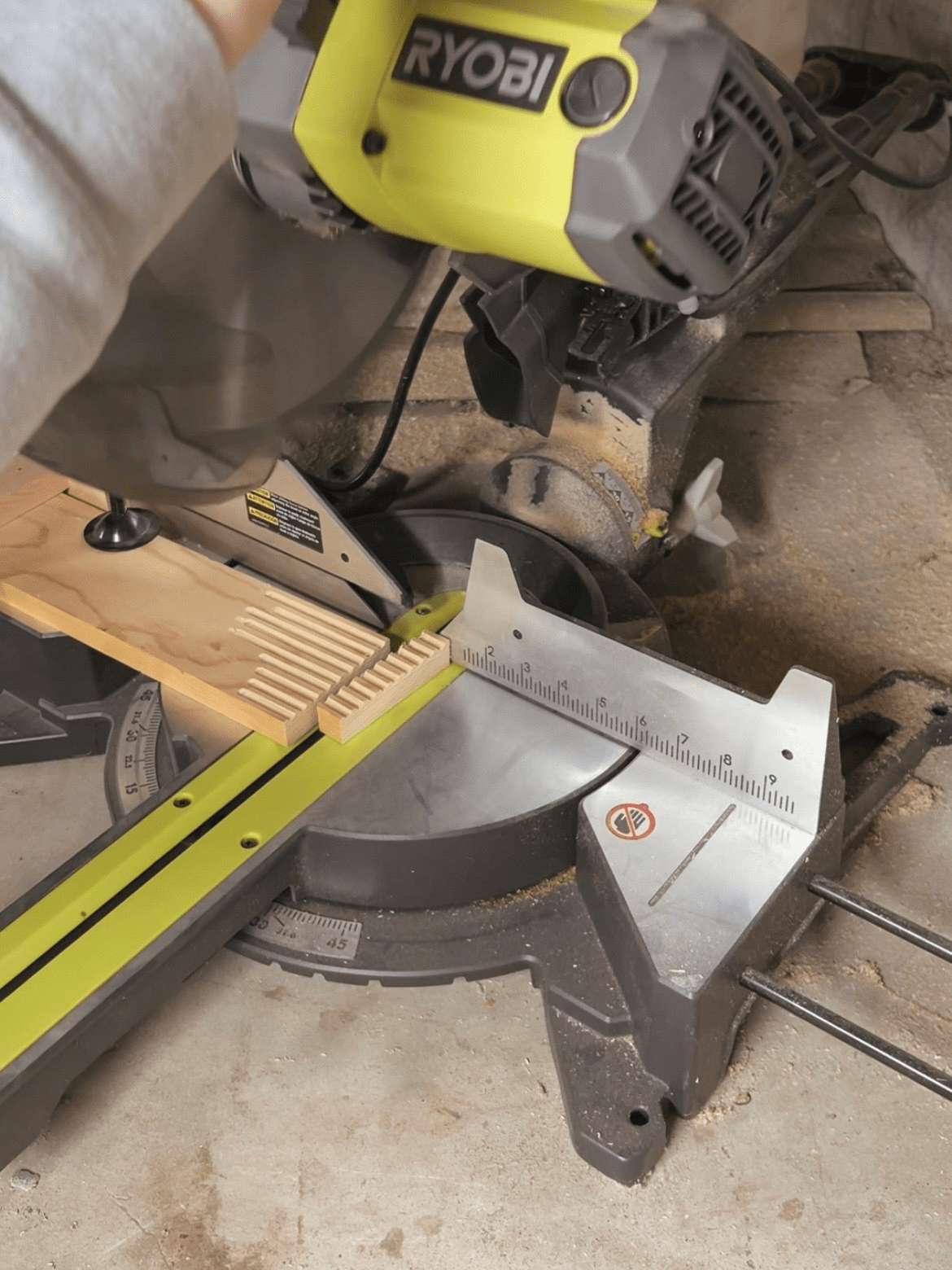

5. Cut the Handle to Size
Once you’re happy with the routed design, use a miter saw to cut the wood block into handle-sized sections. I cut mine about 1 inch wide, but you can adjust based on your preference.
6. Drill the Mounting Holes
To attach the handles, drill two holes in the back that match the spacing on your cabinet or drawer.
If you’re replacing existing hardware, you can cheat like I did- just use the holes already in the doors as your measurement guide.
If your cabinet is new or you want perfect accuracy, use a mounting template tool. It makes lining everything up so much easier.
Do not drill all the way through the handle. Stop before the bit reaches the front surface. You want clean, hidden mounting holes.

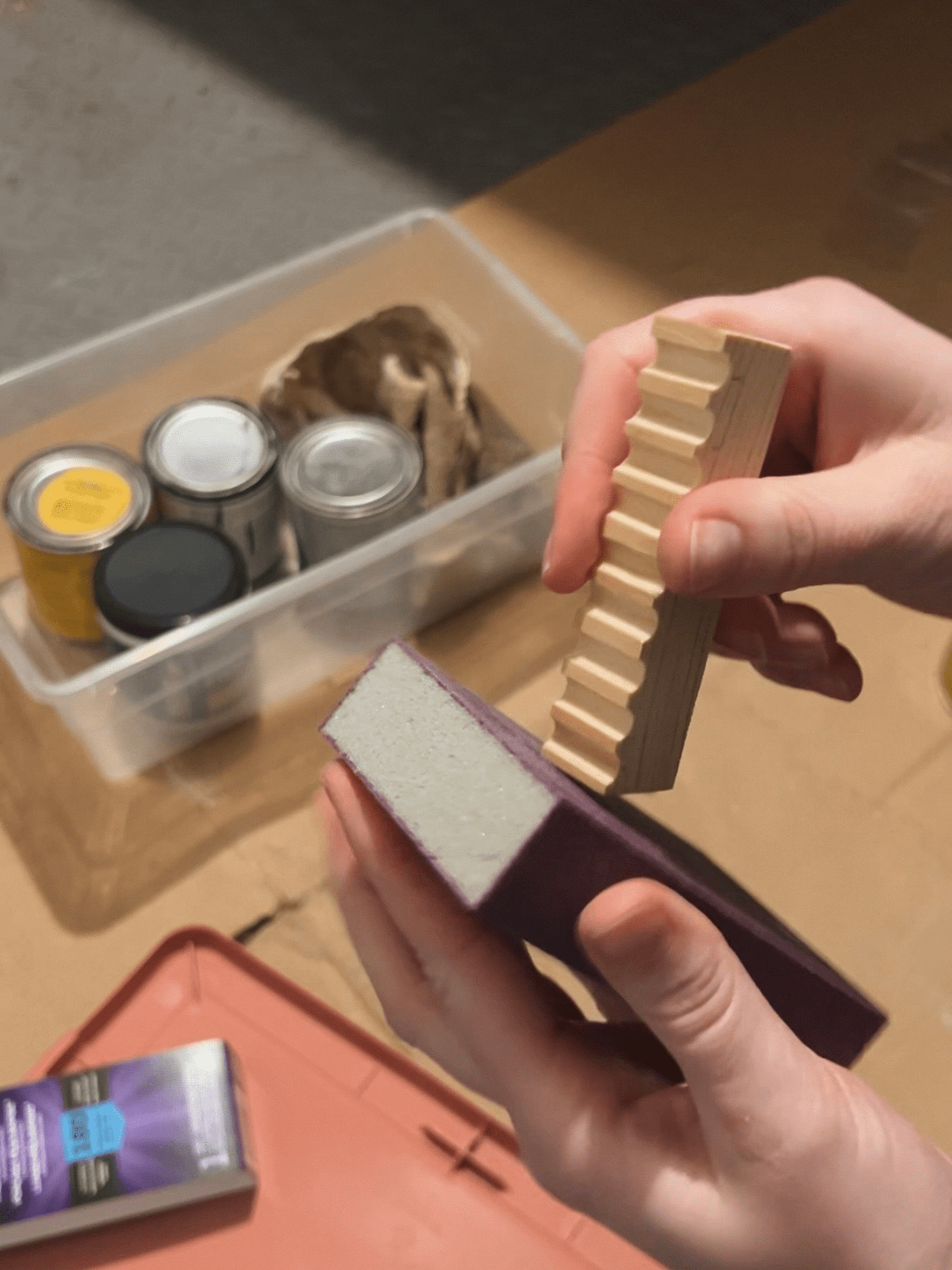

7. Sand + Finish Your Handles
Sand all surfaces starting with 120 grit, then 180, and finish with 220 for a super smooth touch.
At this point, you can leave the wood natural (it’s a beautiful look). But if you want a richer tone, stain the handles. I used American Walnut, which added warmth and contrasted nicely with the routed flute detail.
Add a clear top coat if you want extra protection!

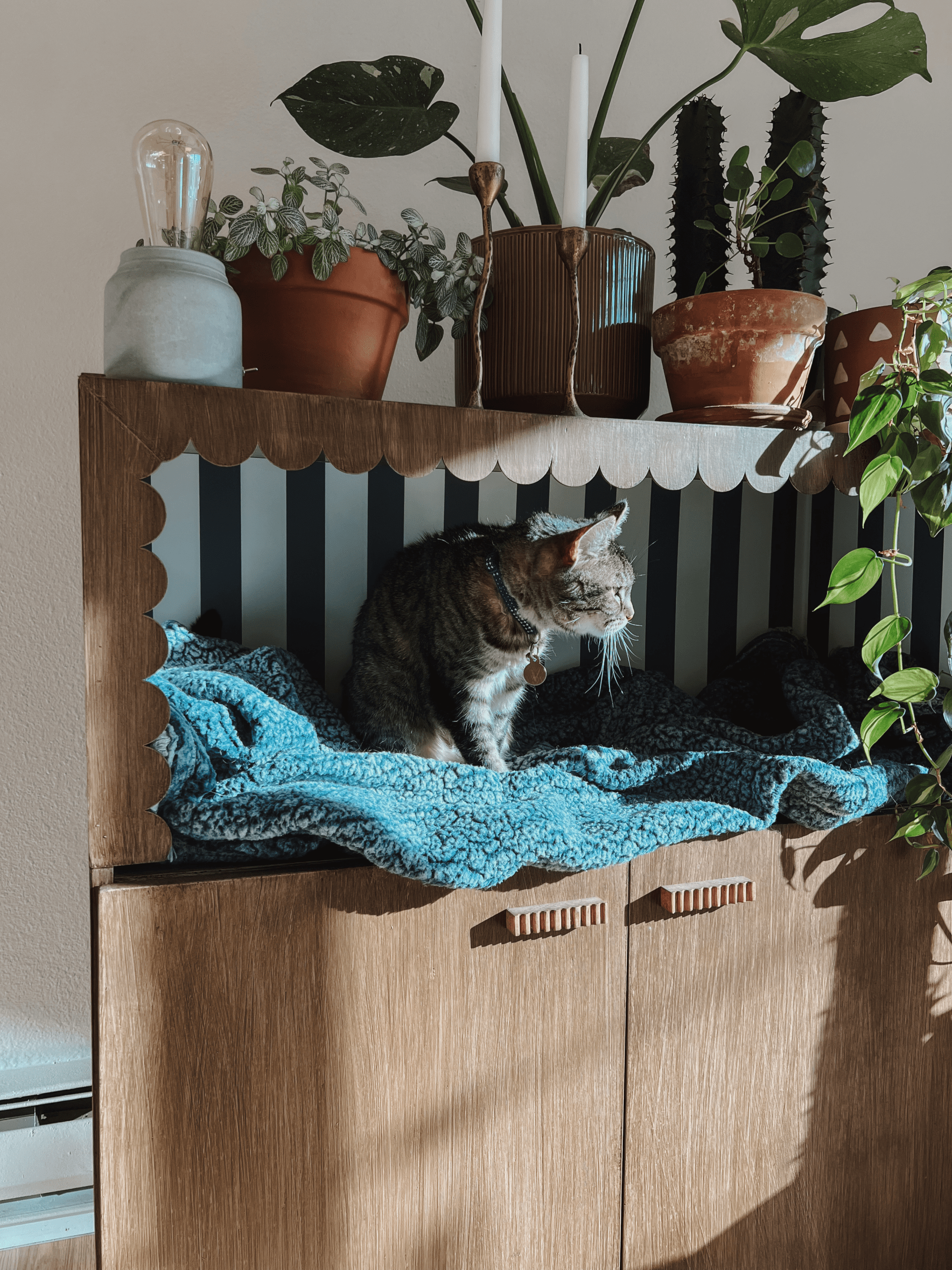

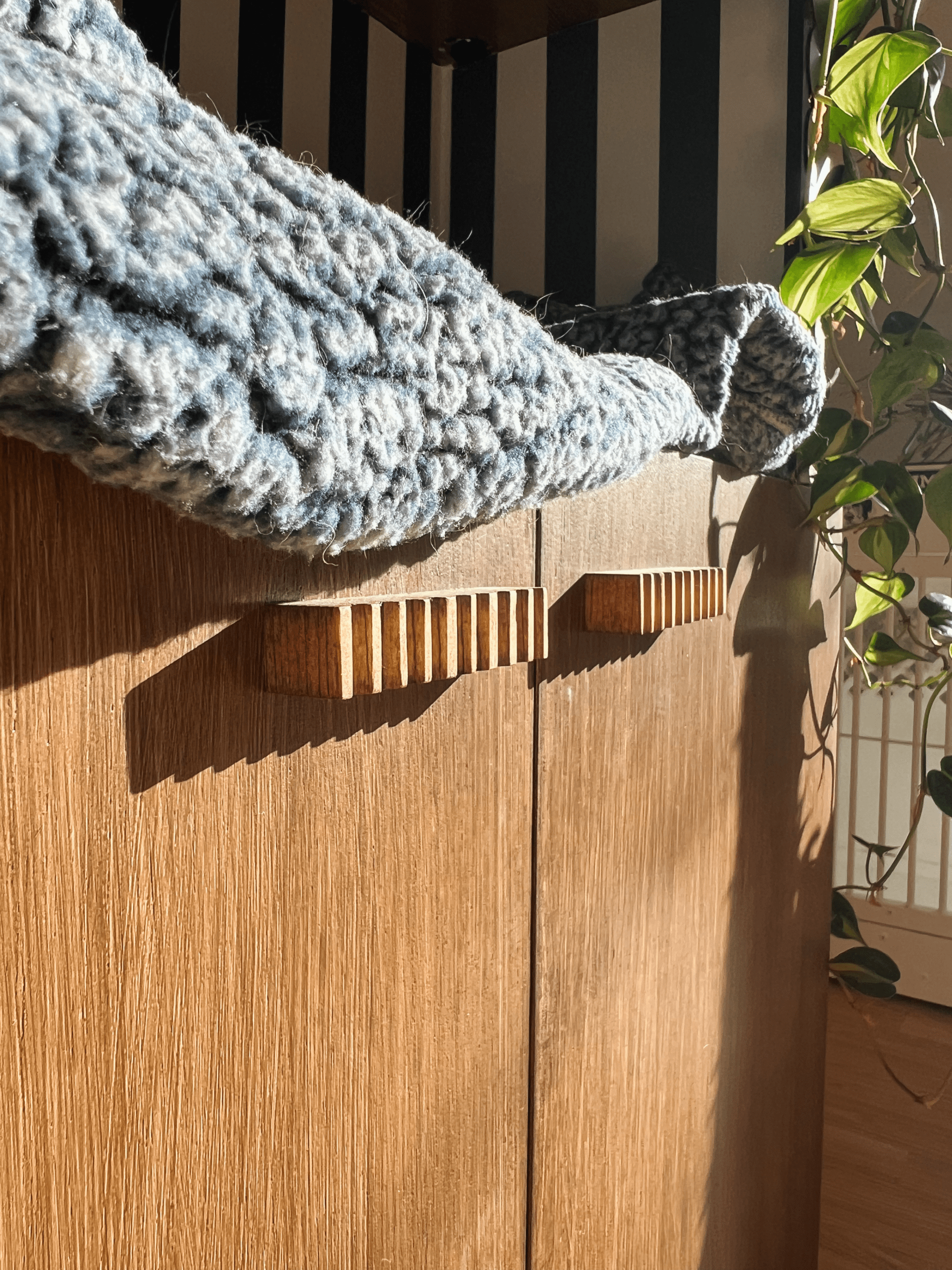

Install + Enjoy
Once the finish dries, screw your new handles into place and admire your handiwork. You’ve just made custom hardware that looks designer, costs almost nothing, and adds a handcrafted touch to your home.
This project is a reminder that you don’t need expensive materials to create something beautiful! Just a scrap of wood, a router, and a little craft time.
